Prisual PTZ Camera, 20x Optical + 16x Digital Zoom,3G-SDI+USB+HDMI+IP Streaming Outputs, Support POE
Main Features
●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces

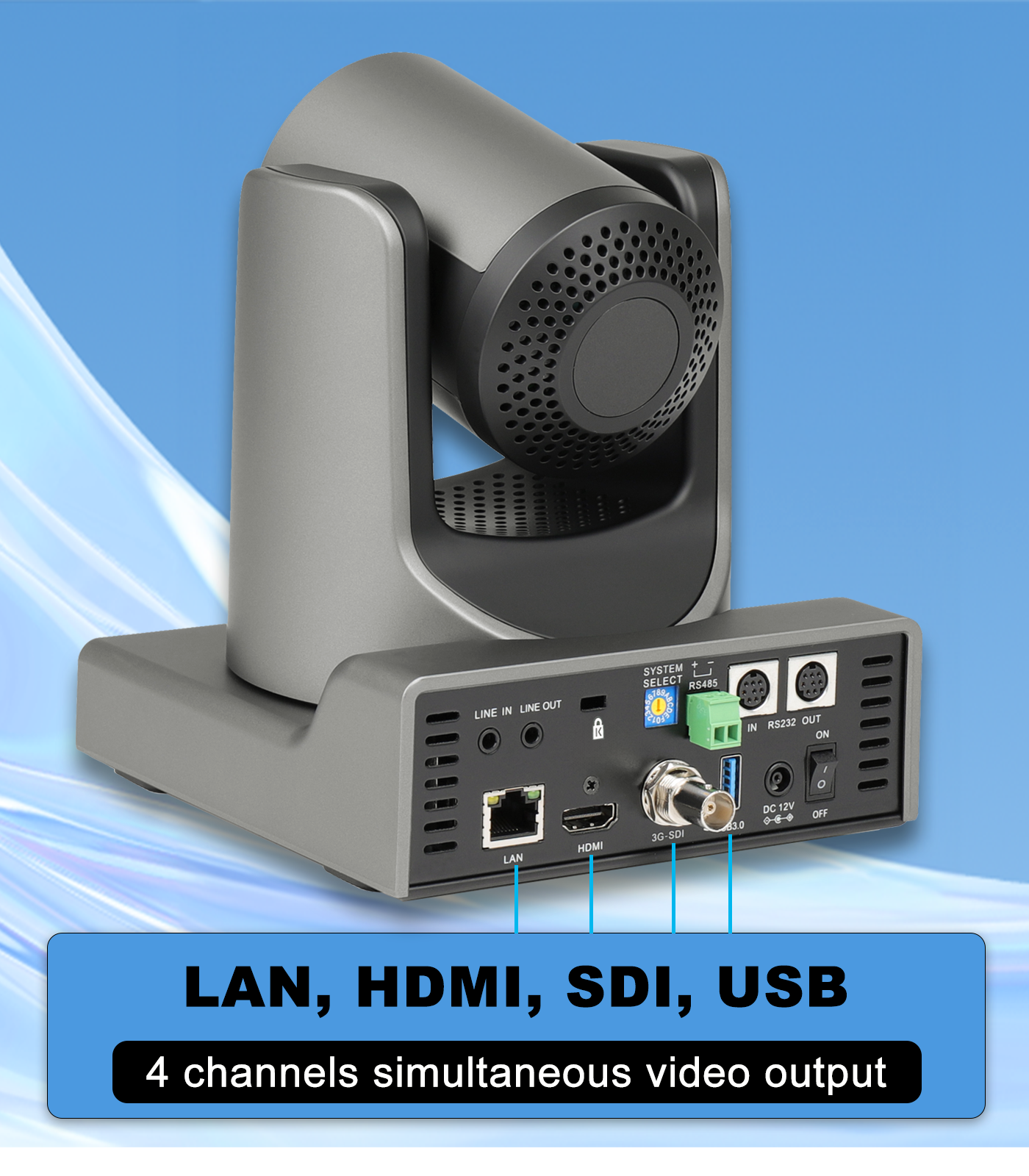

Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using RS232 and RS485 interface, all the parameters of the camera can be controled remotely.
| Camera | |
| Video System |
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 SD: 480i, 576i |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 60.7° ~ 2.28° |
| Vertical Angle of View | 34.1° ~ 1.28° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| PoE | Support (802.3af) |
| Local Storage | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| Video Compression | H.265 / H.264 / MJEPG |
| Video Stream | Main Stream, Sub Stream |
| Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution | 720x576, 720x480, 320x240 |
| Video Bit Rate | 128Kbps ~ 8192Kbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
| HD Output |
1xHDMI: Version 1.3 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
| SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
| Network Interface | 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| USB | 1xUSB2.0: Type A female jack |
| Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack | JEITA type (DC IN 12V) |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| Size | 169mm x 142mm x 164mm |
| Net Weight | 1.35Kg (3.0lb) |
Professional SDI PTZ camera uses Tamron 20X Optical Zoom Lens(Japanese Brand) with the Leading Auto Focus Technology for properly targeting your subject, quick, accurate, and stable. Wide angle lens, FOV up to 60.7 degree.Simultaneous 3G-SDI, HDMI, IP Video output.
FULL HD 1080P Resolutions with Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25. Broadcast Frame Rates Available: 1080p59.94/29.97, 1080i59.94, 720p59.94.
Prisual SDI PTZ camera easy IP control,all over a single Ethernet cable(Cat5/6) simplifying installation and setup for live streaming systems and POE(802.3af、13-15w) enabled.This camera is identical to one big brand PTZ camera, you can refer to their videos to use/set up this camera.

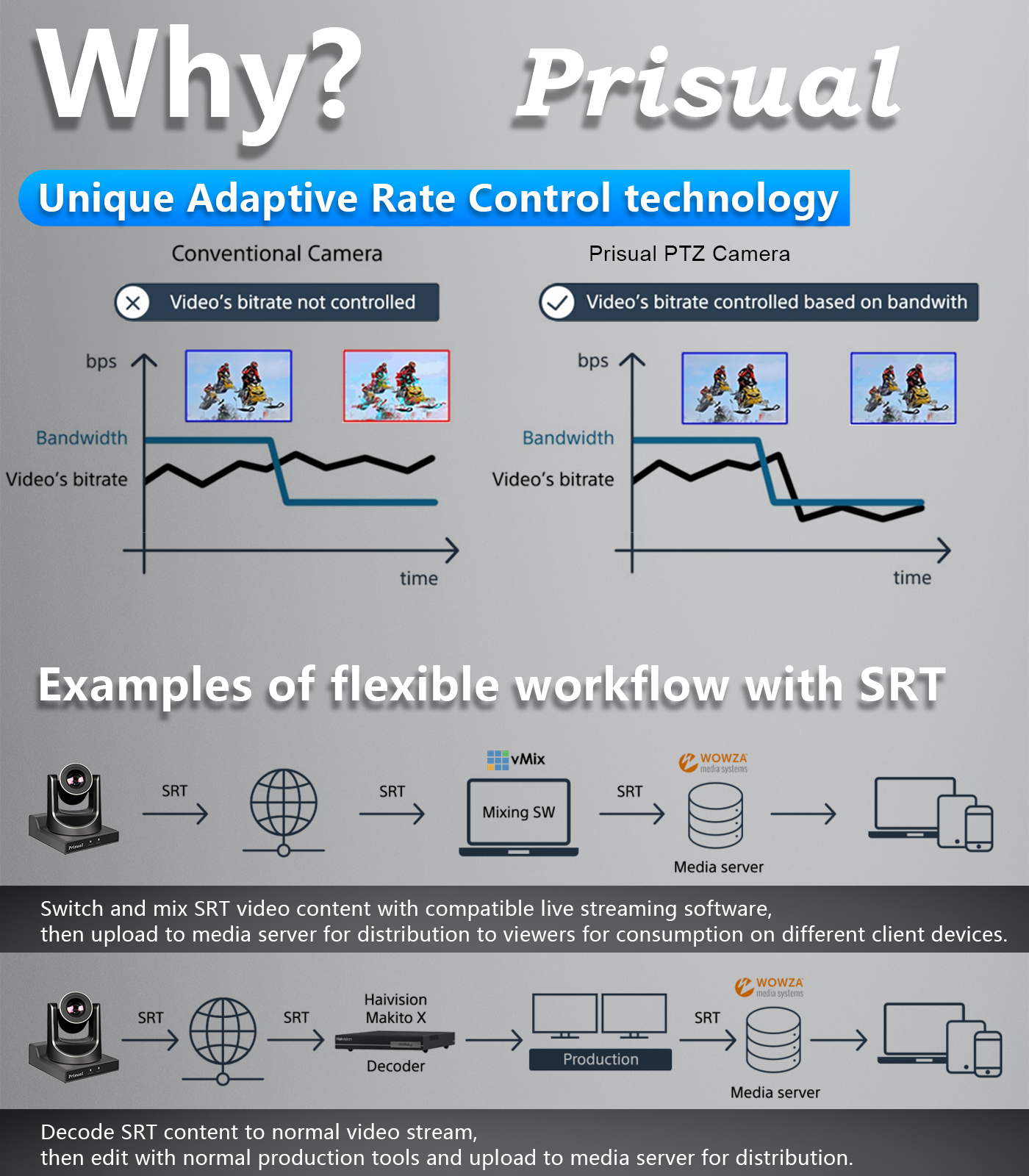

Advanced camera control software:web interface,visual camera preset 255,variable speed via onvif/visca/IP/Vmix control,support IP -stream H.264, H.265, MJPEG, HD video stream over RTSP, RTMPS, TCP/IP,cgi/ HTTP,SRT,HTML5 etc.Very Easy to live stream directly to Facebook and YouTuBe.
The live streaming camera support visca,Pelco-D/Pelco-P control via RS485,RS232 & controller,high SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm works well even in low light.
✔️Worry-Free warranty: 30 days no reason returned back,24-month warranty,Lifetime Customer Supports. any questions or need any help, please feel free to contact us by email for technical support online 24 hours.
