Prisual NDI PTZ Camera 20X with Auto Tracking HDMI, USB, 3G-SDI, IP, TEM-20N Pro

Vendor
Prisual
Regular price
$749.00 USD
Sale price
$749.00 USD
Regular price
$1,099.00 USD
Sold out
Unit price
per
Shipping calculated at checkout.

NDI PTZ Camera, 20x Optical + 16x Digital Zoom,3G-SDI+HDMI+USB+IP Streaming Outputs, Support NDI, Support POE

Main Features

●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces

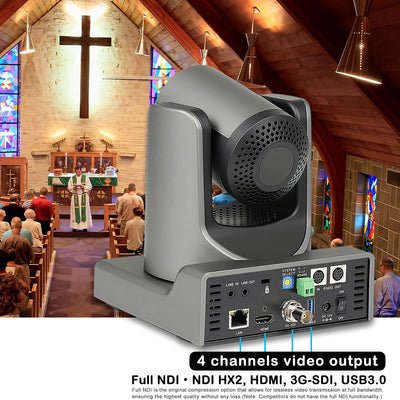

Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using RS232 and RS485 interface, all the parameters of the camera can be controled remotely.

Camera
Video System

HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240

SD: 480i, 576i
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 60.7° ~ 2.28°
Vertical Angle of View 34.1° ~ 1.28°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
H & V Flip Support
Image Freeze Support
PoE Support (802.3af)
Local Storage Support
Number of Preset 255
Preset Accuracy 0.1°
IPC Features
Video Compression H.265 / H.264 / MJEPG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576
Sub Stream Resolution 720x576, 720x480, 320x240
Video Bit Rate 128Kbps ~ 8192Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
 HD Output

1xHDMI: Version 1.3

1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
SD Output 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω
Network Interface 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
USB 1xUSB2.0: Type A female jack
Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol:  VISCA network use only

1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Generic Specification
 Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
Size 169mm x 142mm x 164mm
Net Weight 1.35Kg (3.0lb)

Incredible Full HD Video Quality: 1080P HD Resolutions Up to 60 Frames Per Second.Support broadcasting frame rates:1080p59.94/29.97, 1080i59.94, 720p59.94. Simultaneous HDMI,3G SDI,IP/NDI Video output and PoE 802.3 af,13-15 watts.

Excellent Picture Quality: it used Tamron lens made by Japan,Panasonic Sensor 1/2.7”, CMOS. 20X optical zoom fast, precision, clear focus on your subject,60.7°wide angle on video productions can now remotely capture shot at up to 75.5′ (23 meters) away.

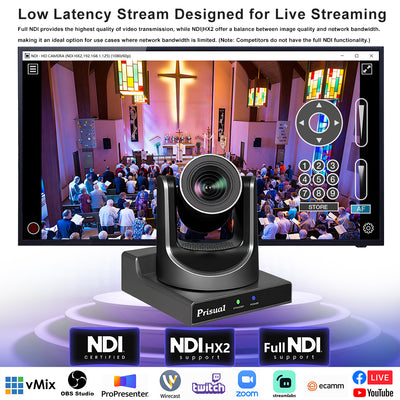

NDI | HX2 Support: (NDI License Included, Officially Approved by Newtek Inc). Leading IP technology to have Real-Time live stream. You can power, control, set up and preview this video camera by connecting 1 ethernet cable, avoid expensive cable runs. Compatiable with vMix, OBS, Zoom, Skype and other video conference software and video production software software which supports NDI HX.

Superior Durability: Prisual PTZ camera Apply metal base is much easier for heat dissipation and prolong the camera’s service life.Unrivaled Compatibility:CGI/Http protocol, MJPEG & H.264 & H.265 Video compression,supports RTSP, RTMP, SRT,Visca over IP or RS232,RS485.

✔️Worry free local after-sales service: 30 days no reason returned back,24-month warranty,Lifetime Customer Supports. any questions or need any help, please feel free to contact us by email for technical support online 24 hours.
