TEM-20N PRO
NDI PTZ Camera, 20x Optical + 16x Digital Zoom,3G-SDI+HDMI+USB+IP Streaming Outputs, Support NDI, Support POE
Main Features
●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces

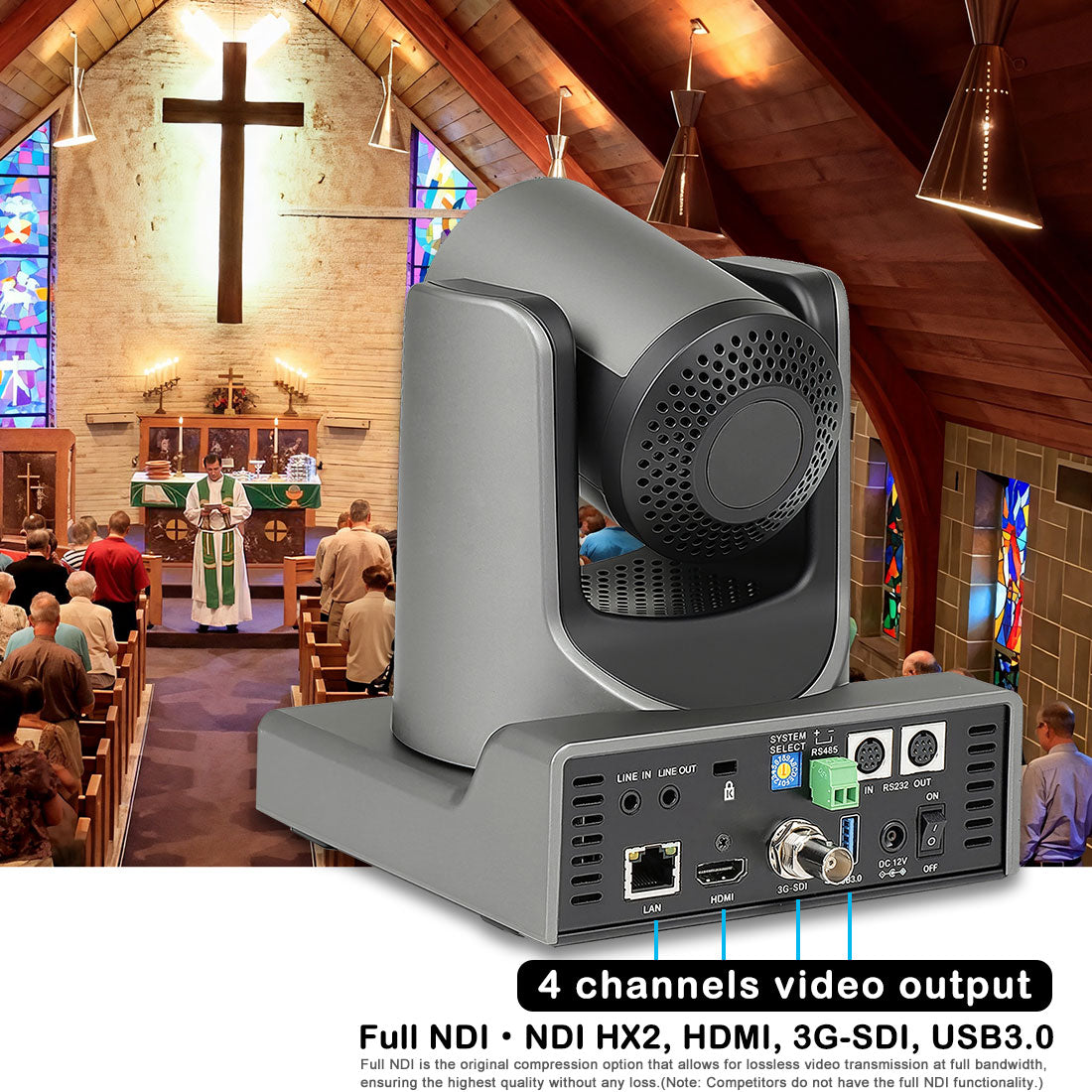

Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using RS232 and RS485 interface, all the parameters of the camera can be controled remotely.
| Camera | |
| Video System |
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 SD: 480i, 576i |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 60.7° ~ 2.28° |
| Vertical Angle of View | 34.1° ~ 1.28° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| PoE | Support (802.3af) |
| Local Storage | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| Video Compression | H.265 / H.264 / MJEPG |
| Video Stream | Main Stream, Sub Stream |
| Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution | 720x576, 720x480, 320x240 |
| Video Bit Rate | 128Kbps ~ 8192Kbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
| HD Output |
1xHDMI: Version 1.3 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
| SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
| Network Interface | 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| USB | 1xUSB2.0: Type A female jack |
| Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack | JEITA type (DC IN 12V) |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| Size | 169mm x 142mm x 164mm |
| Net Weight | 1.35Kg (3.0lb) |
Incredible Full HD Video Quality: 1080P HD Resolutions Up to 60 Frames Per Second.Support broadcasting frame rates:1080p59.94/29.97, 1080i59.94, 720p59.94. Simultaneous HDMI,3G SDI,IP/NDI Video output and PoE 802.3 af,13-15 watts.
Excellent Picture Quality: it used Tamron lens made by Japan,Panasonic Sensor 1/2.7”, CMOS. 20X optical zoom fast, precision, clear focus on your subject,60.7°wide angle on video productions can now remotely capture shot at up to 75.5′ (23 meters) away.

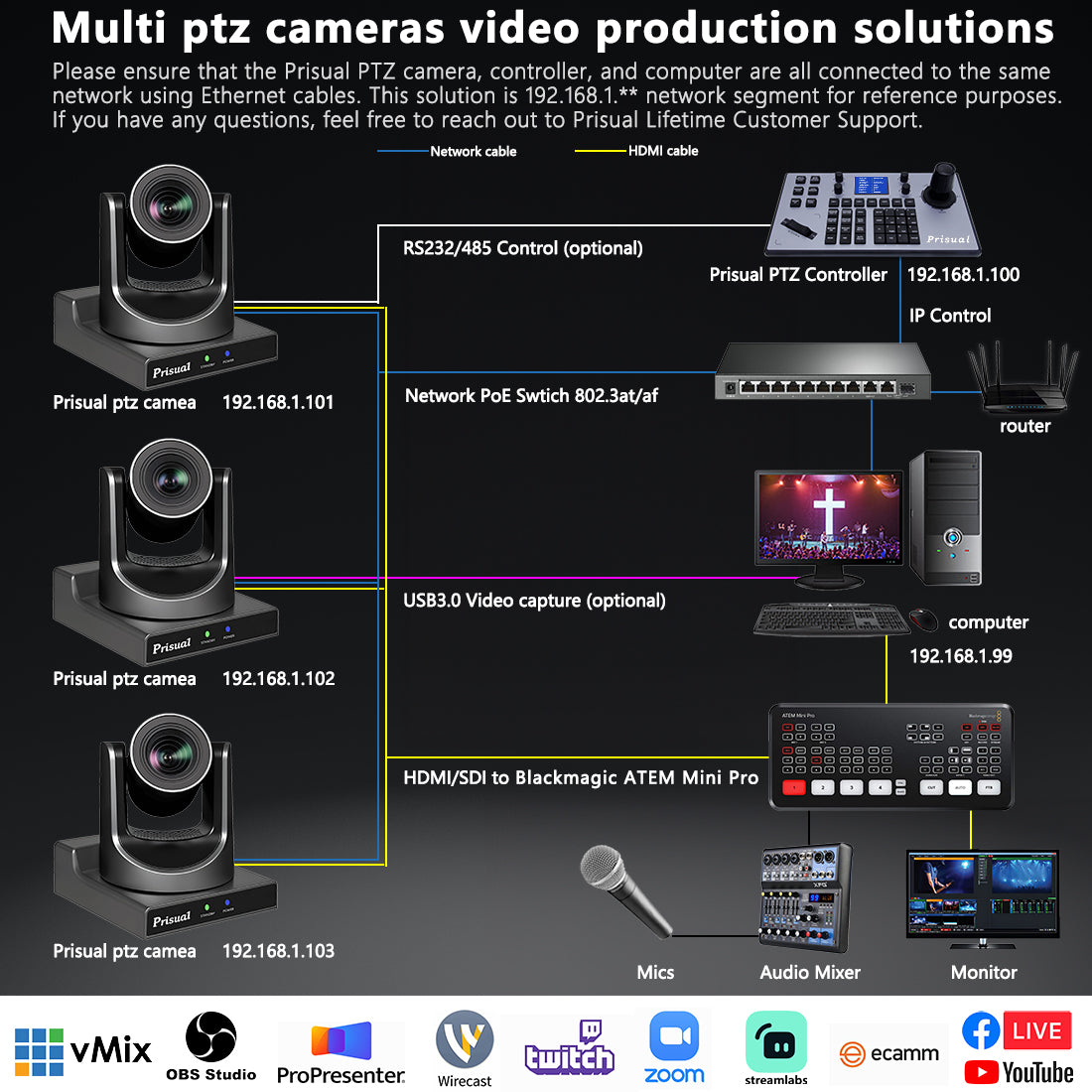

NDI | HX2 Support: (NDI License Included, Officially Approved by Newtek Inc). Leading IP technology to have Real-Time live stream. You can power, control, set up and preview this video camera by connecting 1 ethernet cable, avoid expensive cable runs. Compatiable with vMix, OBS, Zoom, Skype and other video conference software and video production software software which supports NDI HX.
Superior Durability: Prisual PTZ camera Apply metal base is much easier for heat dissipation and prolong the camera’s service life.Unrivaled Compatibility：CGI/Http protocol, MJPEG & H.264 & H.265 Video compression，supports RTSP, RTMP, SRT,Visca over IP or RS232,RS485.
✔️Worry free local after-sales service: 30 days no reason returned back,24-month warranty,Lifetime Customer Supports. any questions or need any help, please feel free to contact us by email for technical support online 24 hours.
