How to use WAN to control IP cameras(DDNS)

1  Setup IP Controlled by Dynamic DNS

Two dynamic DNS: Dyndns.org, 3322.org.

Router Port Mapping:

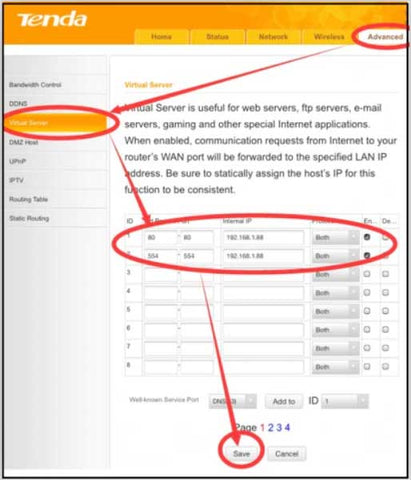

Take Tenda router for example, enter the Router Home Page (interface page), select “Advanced”- “Virtual Server”, add a new port number in “Ext Port”, add a new port number in “Int port”, put camera IP address to “Internal IP”, then select “Save”, shown as below:

2  Dynamic DNS Visit Camera

Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link: http://hostname: port number. For example, setup host computer name: youdomain.f3322.org, the camera port number is 89, the access link should be http://youdomain.3322.org:89.

NOTE:If the camera port default is 80, then unnecessary to input port number, use host name can access camera directly.

3  VLC Stream Media Player Monitoring

Visit VLC Media Server Procedure

• Open VLC media player.

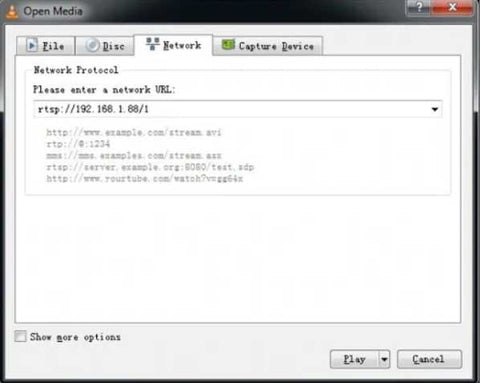

• Click “Media > Open Network Stream”, or click “Ctrl + N”; as below:

• Input URL address:
  rtsp://ip: port number/1 (First stream);
  rtsp://ip: port number/2 (Secondstream).
• Click “Play”.

NOTE: RTSP port number default 554. If the camera port default is 80, then unnecessary to input port number of URL address.
